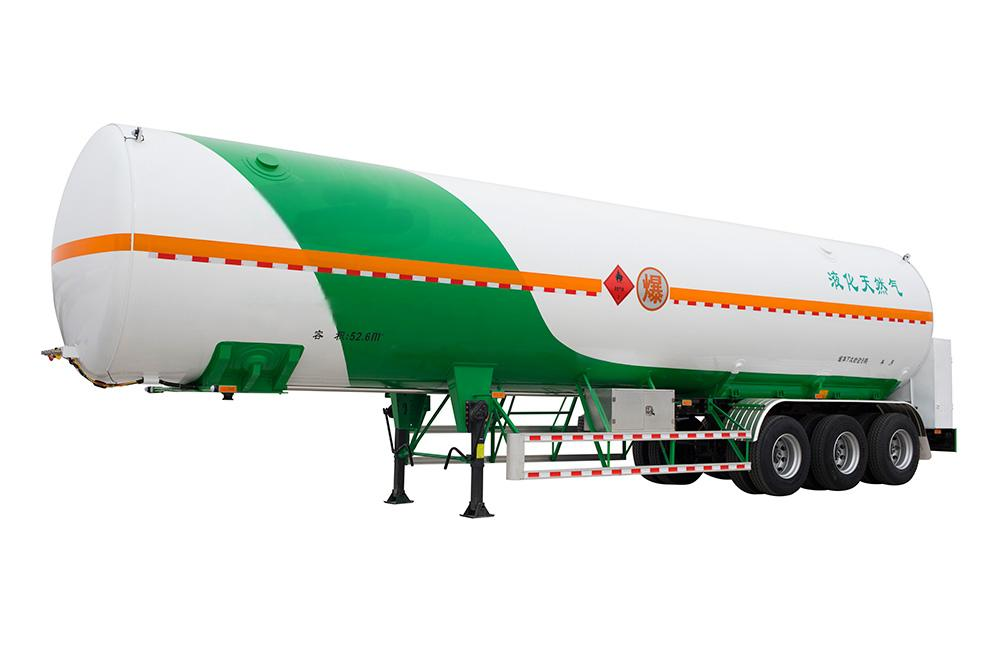

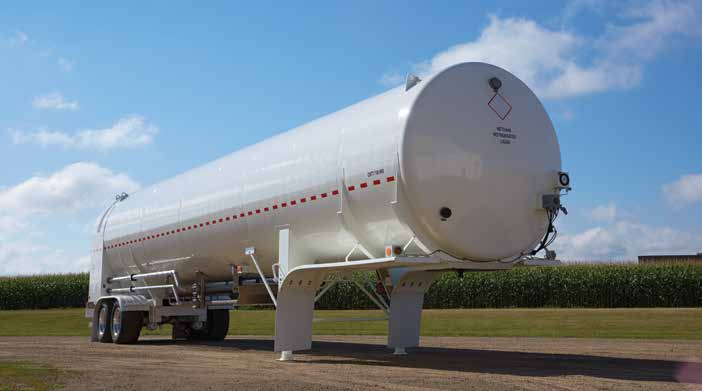

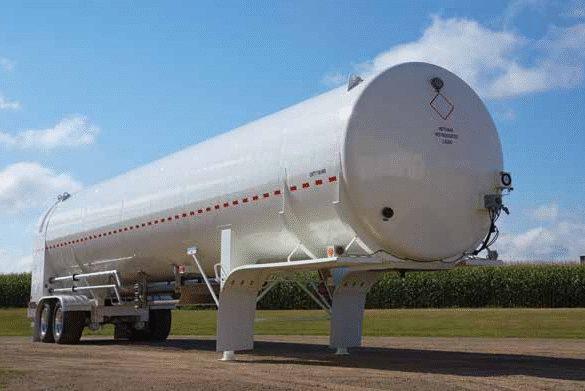

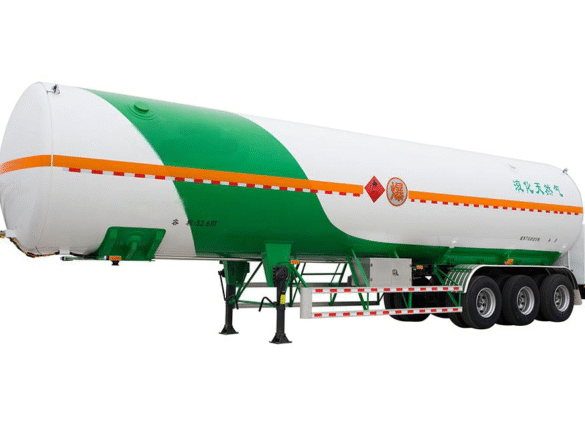

1. High-Capacity Tank: Equipped with a 53,000L LNG tank, designed for efficient transportation of liquefied natural gas.
2. Advanced Thermal Insulation: The SS304 inner vessel and Q345R outer vessel provide durability and effective insulation to maintain cryogenic conditions, with a working temperature of -162°C and a design temperature range from -196°C to 50°C.
3. Robust Suspension and Support System: Features a 13T spring suspension axle and 28T FUWA outriggers, ensuring stability and reliability during transit.
4. Safety and Pressure Control: Designed with a 0.62/-0.07 MPa working pressure and a -0.1 MPa design pressure, ensuring safe operation under varying conditions.
5. Premium Braking System: Equipped with a WABCO EBO system, providing high-performance braking for enhanced safety.

LNG semi-trailers are a critical link in the clean energy industry chain, integrating production, transportation, and consumption across the entire value chain. They serve sectors such as urban gas supply, industrial fuel, transportation transformation, and energy security. With their high efficiency, cleanliness, and operational flexibility, LNG semi-trailers hold irreplaceable strategic value within the global carbon neutrality framework.

he trailer operates at a working temperature of -162°C, with a design temperature range spanning -196°C to 50°C. The inner vessel, made of high-grade SS304 stainless steel, ensures exceptional corrosion resistance and cryogenic performance. The outer vessel, constructed from Q345R steel, provides robust structural support while maintaining thermal insulation. The design pressure for the inner vessel is 0.62/-0.07 MPa, with the outer vessel rated at -0.1 MPa.Designed with both safety and functionality in mind, this LNG trailer leverages advanced engineering to maintain cryogenic temperatures and pressures during transit. It is ideal for industries requiring the bulk transport of LNG, such as energy, industrial gases, and large-scale fueling operations. The high-capacity 53,000-liter tank maximizes efficiency, making it a preferred choice for long-haul operations.
