Product

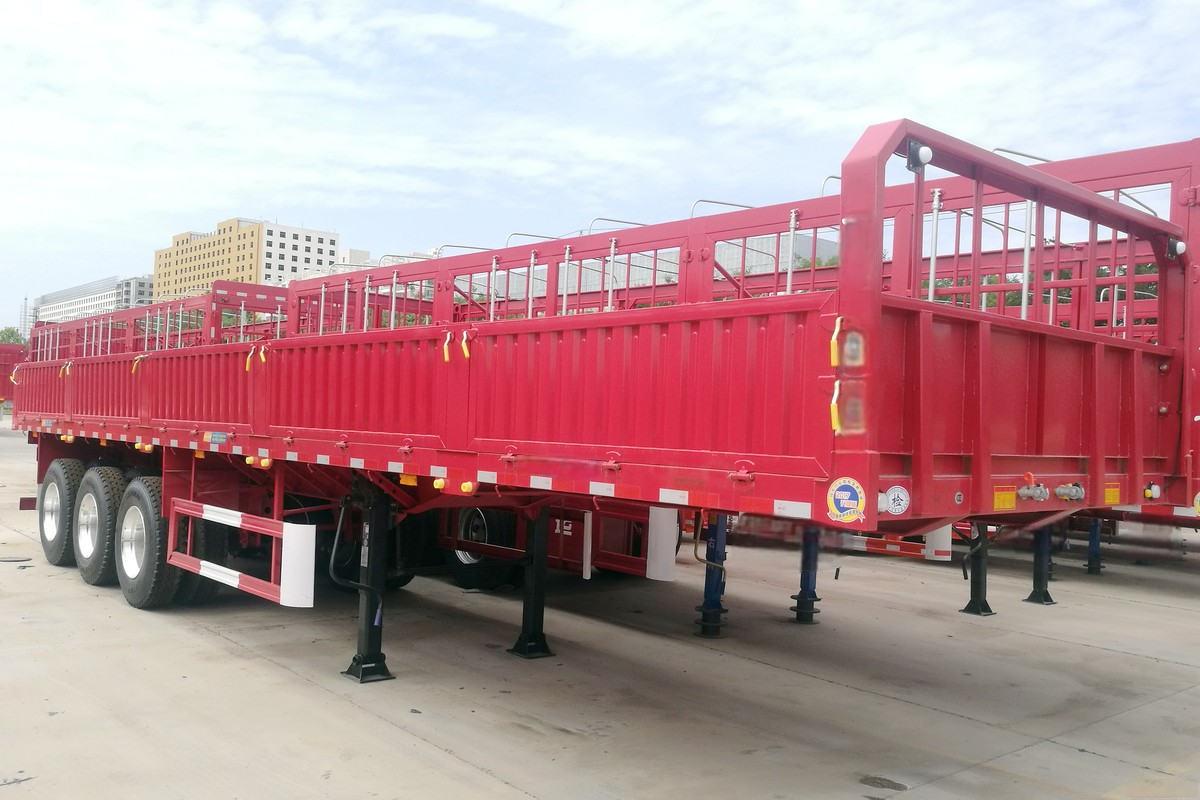

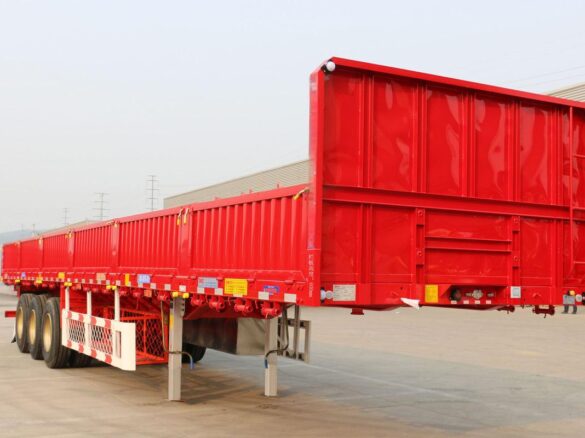

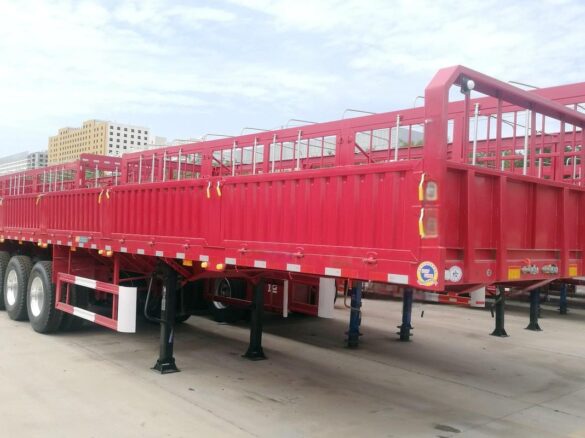

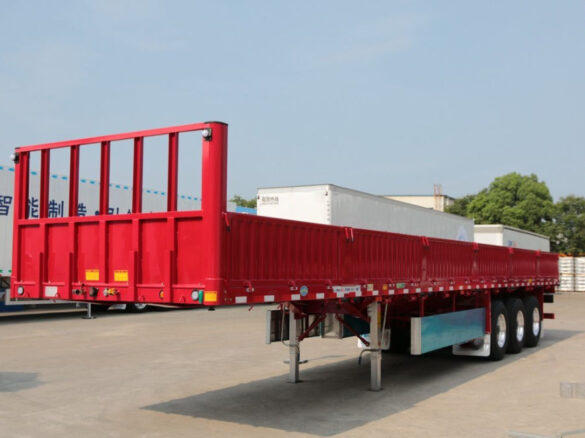

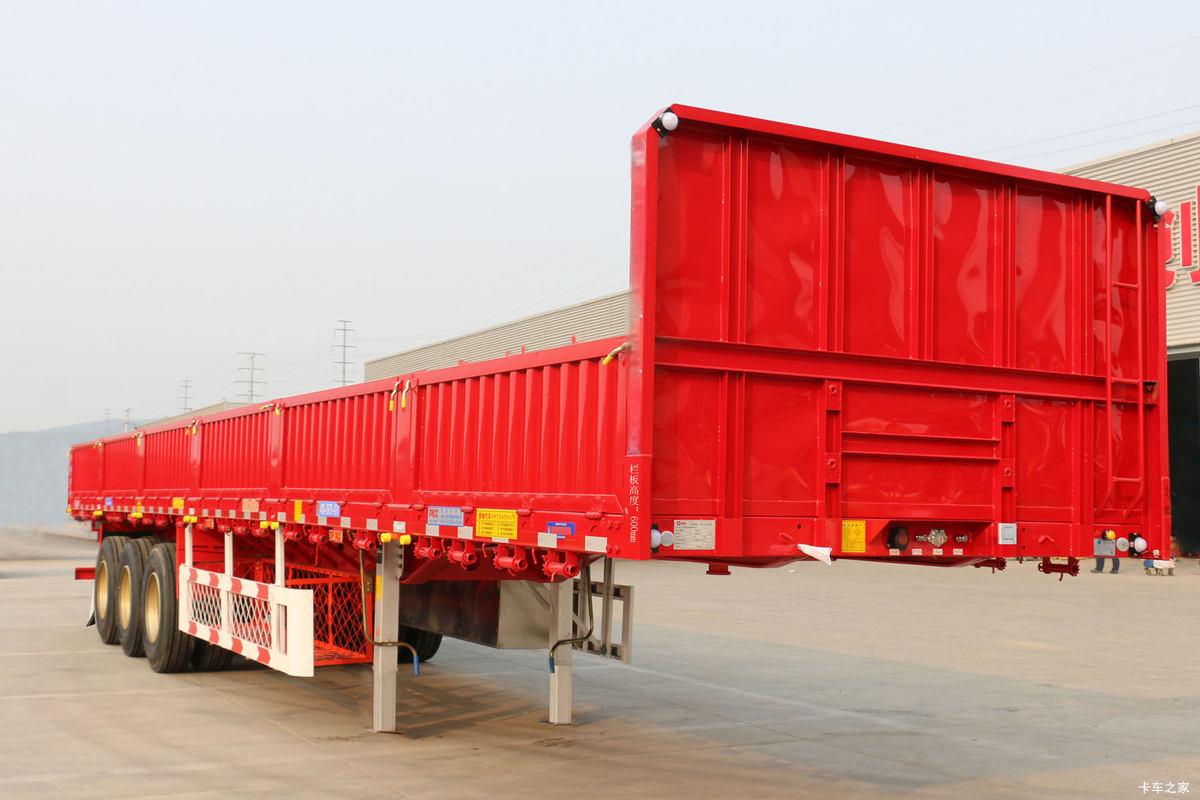

Fence Semi-trailer

Tare Weight (T):7.5
Dimension (m):12.4X2.61X1.55
Axle Load Capacity (T):50(Customizable)



Advantages

  1. The fence  semi-trailer boasts top-tier steel construction, cutting-edge technology, and stringent manufacturing processes. This vehicle exhibits a well-designed structure, dependable performance, effortless operation, and an aesthetically pleasing exterior.
  2. It showcases impressive attributes such as a capacious interior and exceptional load-bearing capacity. The trailer’s dimensions in terms of length, width, and height can be customized to cater to diverse transportation requirements.
  3. Itsmulti-tiered shelving system maximizes cargo storage within minimal space, thereby enhancing cargo capacity and overall transportation efficiency.

Purpose

The fence semi-trailer is a specially designed transport vehicle. It is characterized by fixed or detachable rails (side walls) on both sides of the cargo compartment. It is usually used to transport bulk goods or goods that need enclosure protection. The side wall can prevent the goods from scattering and reduce transportation losses.

Performance

The fence sime-trailer are usually made of high-strength steel or aluminum alloy, taking into account both lightweight and durability. The side panels of some models can be customized to be foldable or disassembled to adapt to different loading and unloading needs (such as container loading and unloading). The bottom is equipped with reinforced beams to withstand the lateral pressure of the cargo and prevent deformation. The load range is usually 20 ~ 40 tons, and the volume can reach 60 ~ 80 cubic meters (depending on the vehicle type). It is suitable for highway and short-distance heavy-duty transportation. Complex road conditions (such as mining areas and construction sites) require reinforced chassis and suspension.

Specification

Dimensions (L×W×H)  (m) 12.4X2.61X1.55 (can be customized)
Tare weight (kg) 7.5
Payload Capacity     (T) 50(Customizable)
Tank Material Q345B/T700 steel height 500mm
Main Beam Upper Plate: 14mm, Lower Plate: 16mm,  vertical plate: 8mm(Customizable)
Side beam 16mm channel steel (material is Q235B steel)

(Customizable)

Bottom plate thickness ss (mm) 3 (Customizable)
sidewall thickness(mm) 1.2(Customizable)
sidewall height(cm) 60(Customizable)
Suspension Mechanical suspension Air suspension (USA or Germany)
Leaf spring 10X13/16X90
Drop gear Duty landing gear weighing 28 tons. Brand optional FUWA/JOST etc
Braking system Dual line brake system, air chamber T30/30, 3X40L air tank
ABS system None or installation as required.
Tires 385/65-22.5 (Brand optional)
Electrical system Voltage: 24v waterproof    Socket: 7 ways (7-wire harness); Lead lightweight (standard rear lighting, turning light, rear reflector, side light, edge reflector, etc.)
