| Total Volume for 8pcs Tubes (m3): | 17.68 |
| Net Weight for 8pcs Tubes Skid Container(kg): | 25752 |
| Full Load Weight( Net weight + Load Weight) (T): | 26.2 |

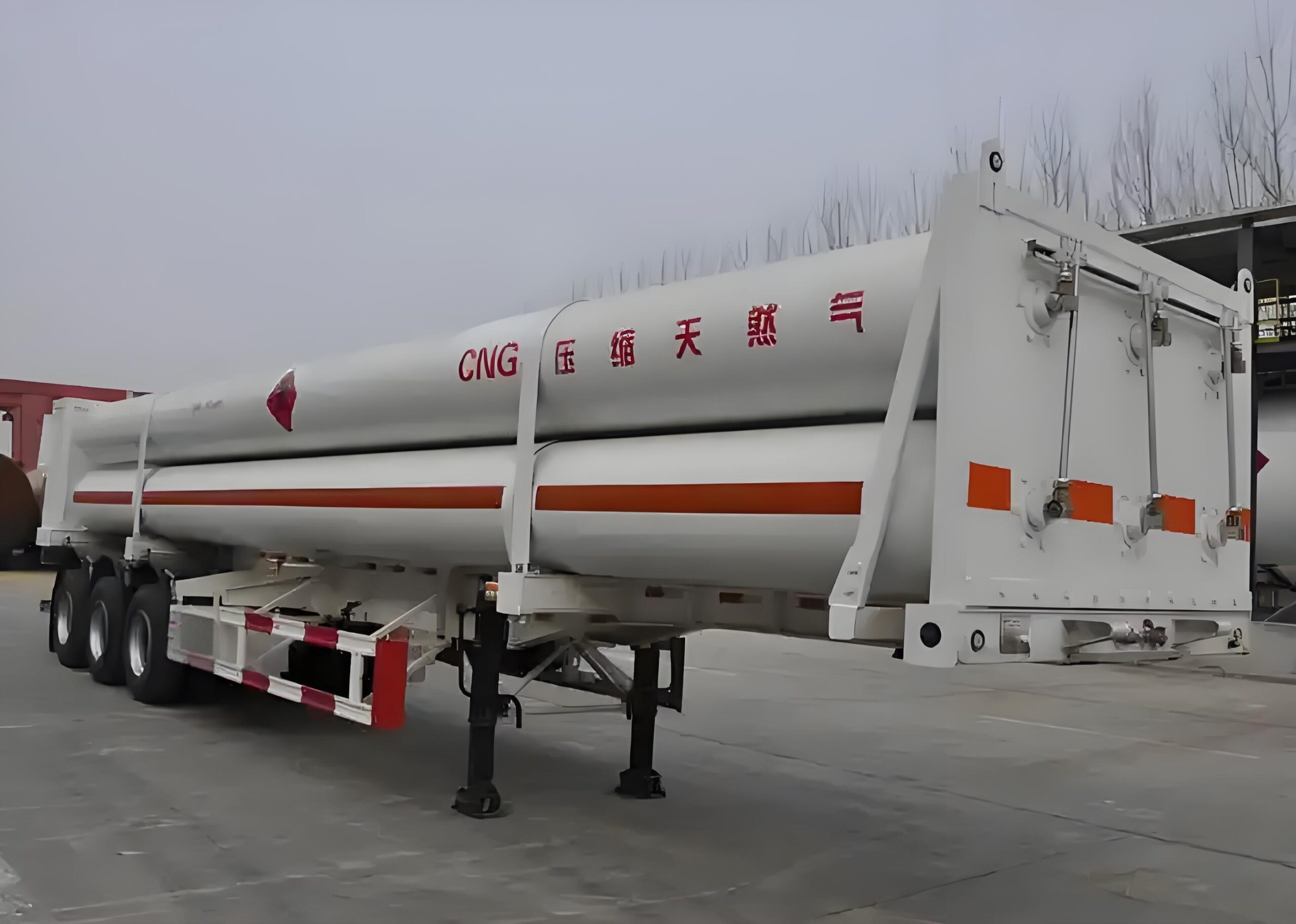

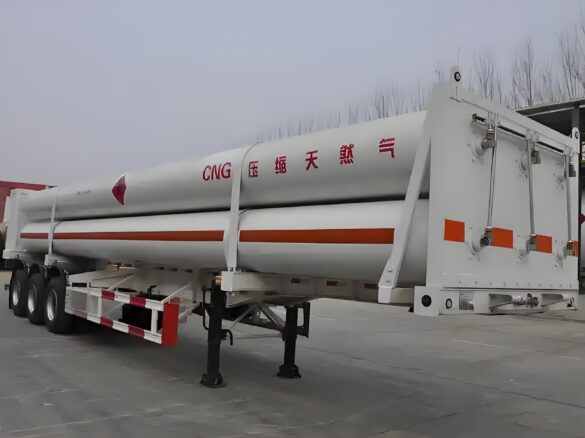

The core advantages of CNG tankers lie in their environmental benefits, economic efficiency, safety, and strategic energy value, making them particularly suitable for scenarios requiring high-frequency transportation, long-distance distribution, or stringent environmental standards. With the acceleration of global carbon neutrality initiatives and technological advancements, the role of CNG tankers in the natural gas industry is expected to become increasingly critical.

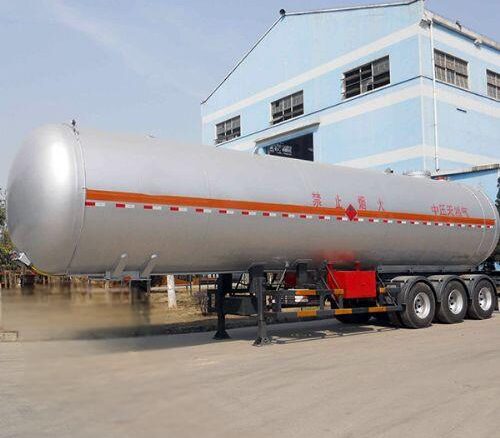

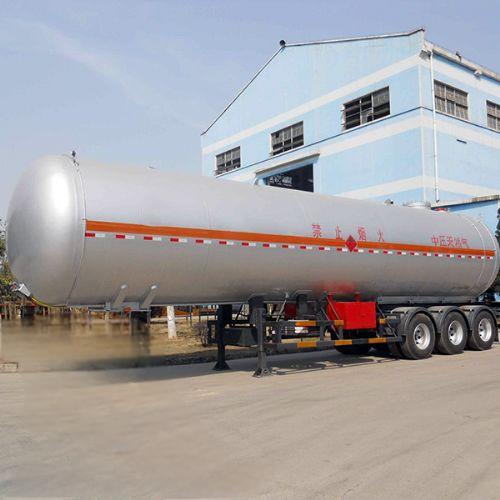

Gas tank semi-trailer is a special vehicle specially used to transport liquefied gas (LNG/liquid oxygen/liquid nitrogen, etc.) or high-pressure gas (oxygen/hydrogen/natural gas, etc.). It has the characteristics of high safety, thermal insulation and pressure stability, and is widely used in energy, chemical industry, medical and other fields.
The tank structure is made of stainless steel and carbon steel + lining. It has a vacuum multi-layer thermal insulation and polyurethane foam thermal insulation design. It is equipped with bursting disc + safety valve for overpressure protection. The liquid level gauge/pressure gauge can monitor the system in real time and self-pressurize and unload.
| Load Weight for H2 in Total 8pcs Tubes (kg) | 395 ( 20°C) |
| Leakage Test Pressure (MPa) | 25 |
| Safety Device Burst Pressure (MPa) | 37.5 |
| Safety Device Diameter (mm) | ≥Ø20 |
| Filling Connector Diameter | 1″ |

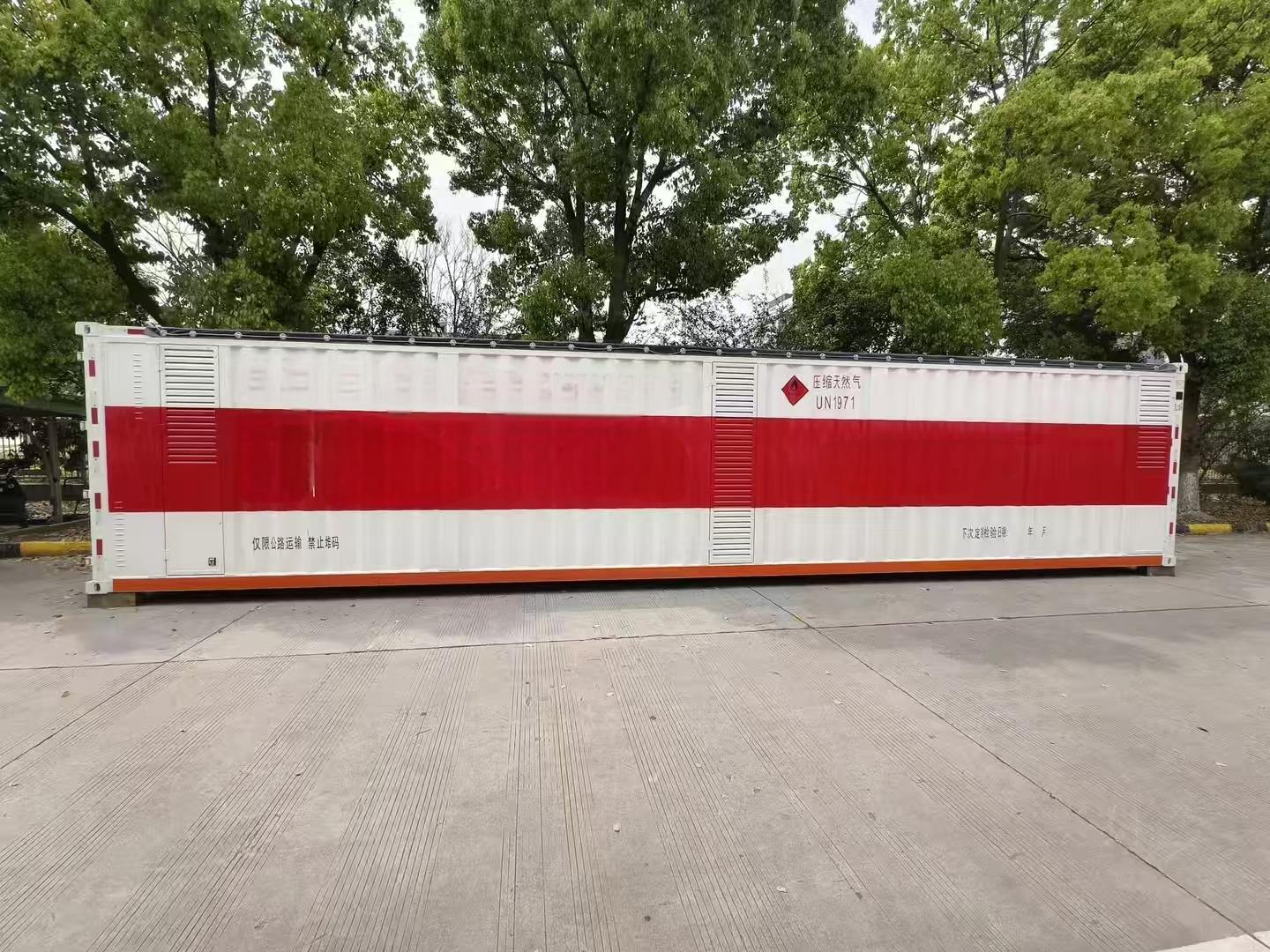

| Outside Diameter for Skid Container (mm) | 12,192 x 2,438 x 1,400 |
| Working Pressure (MPa) | 25 |
| Ambient Temperature (°C) | -50~65 |
| Tube Material | 4130X |
| Transporting Medium | H2 |
| Volume per 1pc Tube (L) | 2,210 |
| Filling Weight per 1pc Tube (kg) | 49.4 |
| Weight per 1pc Tube (kg) | 2,850 |
| Hydraulic Test Pressure (MPa) | 37.5 |
| Leakage Test Pressure (MPa) | 25 |
| Dimension (diameter * Length) (mm) | Ø559 * 10985 |
| Tare Weight (T): | 9.8 |
| Dimension (m): | 11.5X2.5X3.9 |
| Axle Load Capacity (T): | 35 |
| Dimension(m): | 10.087X2.55X2.65F1 |
| Tank capacity(㎥): | 40 |
| GCW(T): | 36 |
| Payload Capacity (t): | 3.6 |
| External Dimension (m): | 8.02X2.55X3.06 |
| Tare Weight (kg): | 7 |
| Payload Capacity (T): | 33.5 |
| Dimensions (L×W×H) (m): | 13.75 X3X1.5 |
| Curb Weight (T): | 6.5 |
