Flatbed semi-trailers, with their strong carrying capacity and efficient transportation efficiency, meet a variety of material transportation needs. Their robust vehicle structure enhances the safety of goods transport in logistics operations.

Flatbed semi-trailers are mainly used for medium and long-distance freight transportation, construction machinery transportation, and large equipment transport. Due to their open design without side rails, flatbed trailers can transport various non-dismantling goods, such as excavators, loaders, harvesters, and other large equipment.

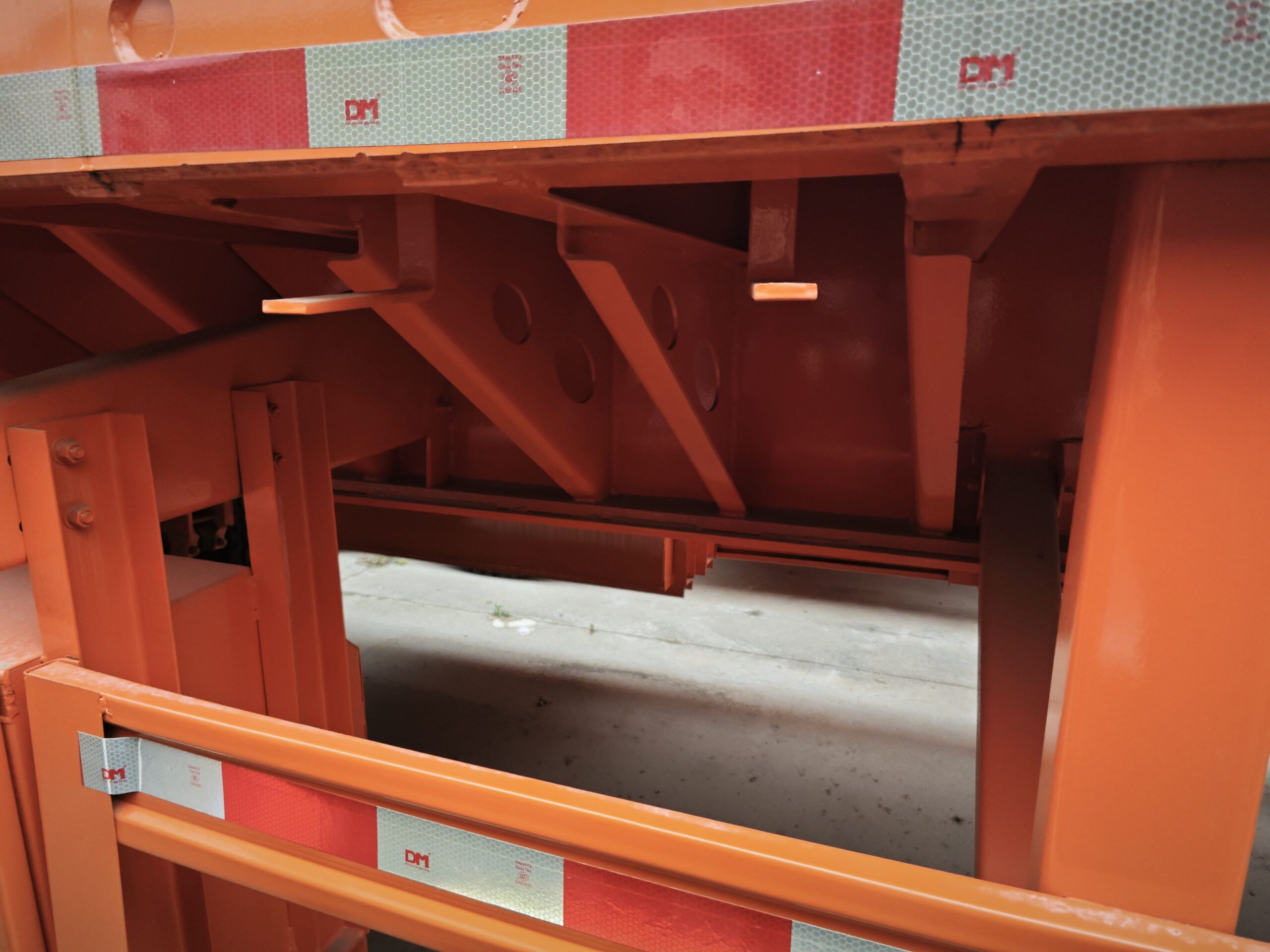

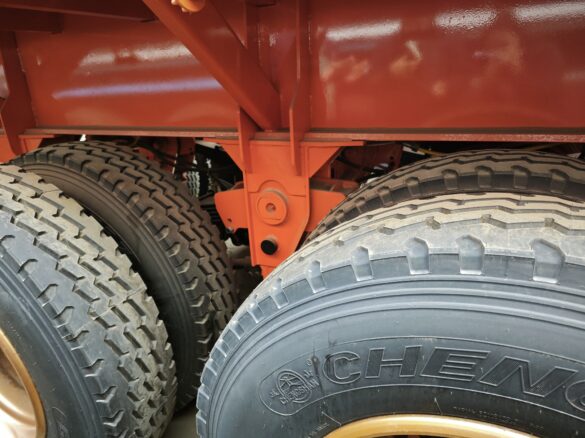

3 13-ton widened axles (without ABS), with 10 13mm thick leaf springs and 60# mechanical suspension, provide excellent load-bearing capacity (total load of about 39 tons) and anti-bumping performance, adapting to complex road conditions. 450-500mm high-strength steel beam (14×8×16mm) with 10# channel steel through beam, with 16# channel steel side beam, the overall structure has high rigidity and strong torsion resistance, ensuring no deformation under heavy load. 4 double 2 single air chamber configuration, with Ruili relay valve, fast braking response, good heat dissipation, and safer long downhill conditions. 12 triangular 12R22.5 vacuum tires (with 14-layer standard steel rims), strong grip, wear resistance and reduce the risk of tire blowout. With high load-bearing and strong structure as the core, this semi-trailer takes into account safety and practicality, and is suitable for efficient heavy-load transportation needs, but it should be noted that there are no ABS system braking restrictions on slippery roads. It is recommended to select auxiliary safety devices according to actual working conditions.
