| Curb Weight (T): | 9.5 |
| Dimension (m): | 13X3X1.7 |
| Axle Load Capacity (T): | 60 |
Flatbed semi-trailers, with their strong carrying capacity and efficient transportation efficiency, meet a variety of material transportation needs. Their robust vehicle structure enhances the safety of goods transport in logistics operations.

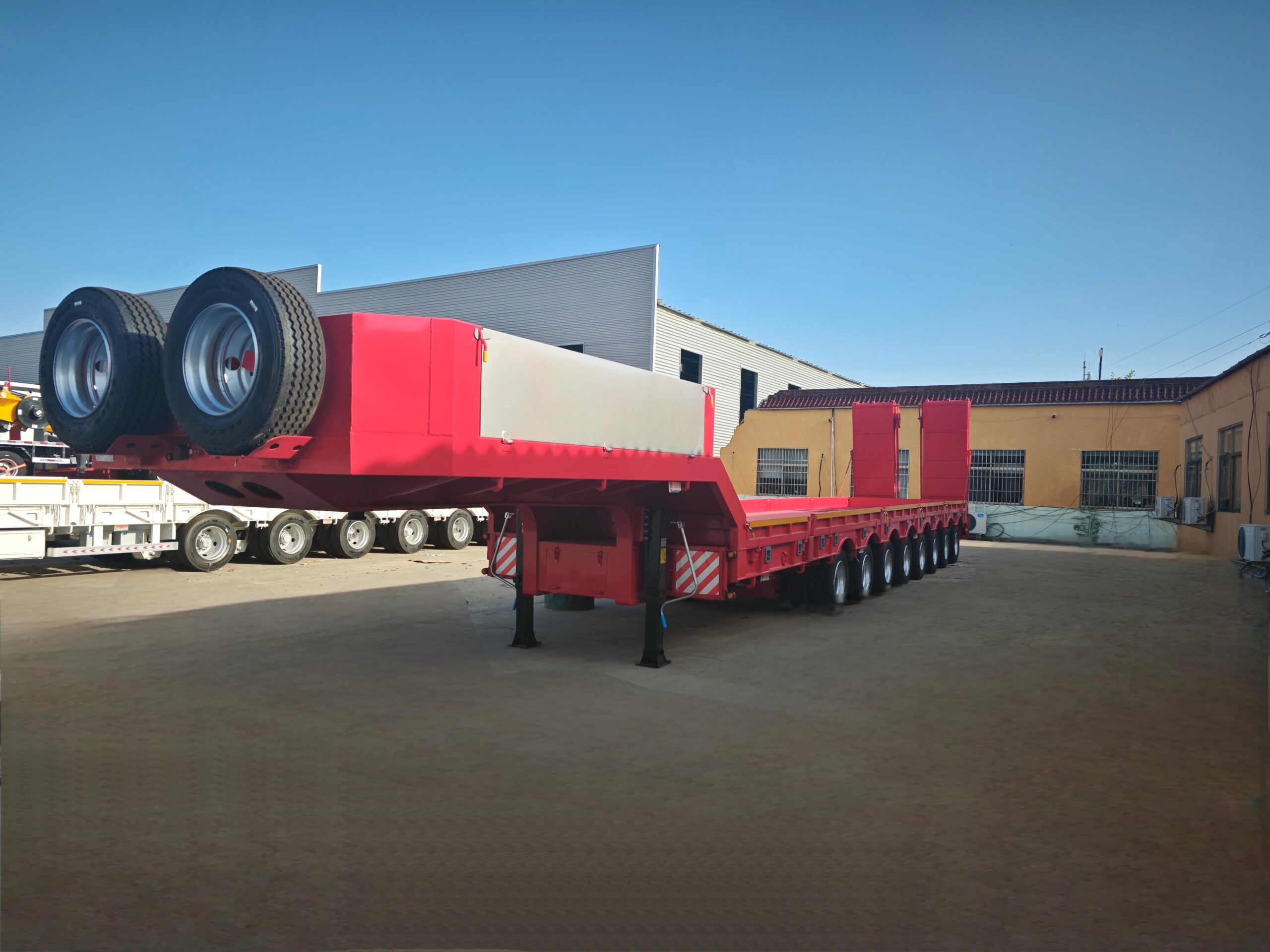

Low flatbed trailer is a special transport vehicle specially designed to transport super-large, overweight or non-detachable goods. Its low flatbed structure and enhanced load-bearing capacity make it useful in the transportation of construction machinery, large equipment and heavy goods. plays an irreplaceable role.
The platform height is usually 0.8 ~ 1.2 meters, which lowers the center of gravity, improves stability, and adapts to height-limited road sections. The standard load capacity is 30 ~ 100 tons, and the heavy-duty model can reach more than 200 tons; Made of high-strength steel or alloy material, the frame has strong torsion resistance. A variety of structural designs, optional hydraulic lift, remote control steering, electronic braking system (EBS), or ladders, binding points and other accessories.
| Dimensions (L x W x H) (mm) | 13000 * 3000 * 1700 (can be customized) |
| Tare weight (kg) | 9500 (depending on final configuration) |
| Maximum Load Capacity (kg) | 60000 (can be customized) |
| Main crossbeam | Q345B/T700 Steel,The upper wing plate is 16 mm,The lower wing plate is 18mm,Standing board is 12mm (can be customized) |
| Side beam | 20 # channel steel (customizable) |
| Pedestal | 4mm (Customizable) |
| Wheelbase (mm) | 8580+1310+1310 |
| Axle | 13/16/20 tons, Axle number optional e.g. 2/3/4/6 axle…, Axle brand optional like SAF/FUWA/BPW, ETC. |
| Tire | 12.00 R22.5/315 80R22. 5/11. 00R20/12. 00R20 (Brand, single and double optional) |
| Wheel rim | 9.00-22.5/8.00-20/8.50-20 |
| Traction pin | 2 “(50mm) or 3.5” (90mm) JOST or other brand optional |
| Hovering | Mechanical suspension Air suspension (USA or Germany) |
| Leaf spring | 90 (width) mm * 13/16 (thickness) mm * 10 (layer) |
| Outrigger | A 28-ton landing gear. Brand optional FUWA/JOST etc |
| Twist lock | 4/8/12 units (customizable) |
| Braking system | Dual line brake system, air chamber T30/30, 3 X 40L tank drum |
| Electrical system | 1. Voltage: 24v waterproof 2. Socket: 7 ways (7-wire harness); Lead lightweight (standard rear lighting, turning light, rear reflector, side light, edge reflector, etc.) |
| Payload Capacity (T): | 35 |
| Dimension (L×W×H) (mm): | 13,950 X2,550X1,250 |
| Curb Weight (T): | 5 |
| Payload Capacity (T): | 21 |
| Dimension (m): | 13.75X2.55X3.98 |
| Loading Capacity (unit): | 7 |
| Payload Capacity (T): | 33.5 |
| Dimensions (L×W×H) (m): | 13.75 X3X1.5 |
| Curb Weight (T): | 6.5 |
| Payload Capacity (kg): | 36000 |
| External Dimension (mm): | 8020*2550*3060 |
| Tare Weight (kg): | Approx.7,000 |
