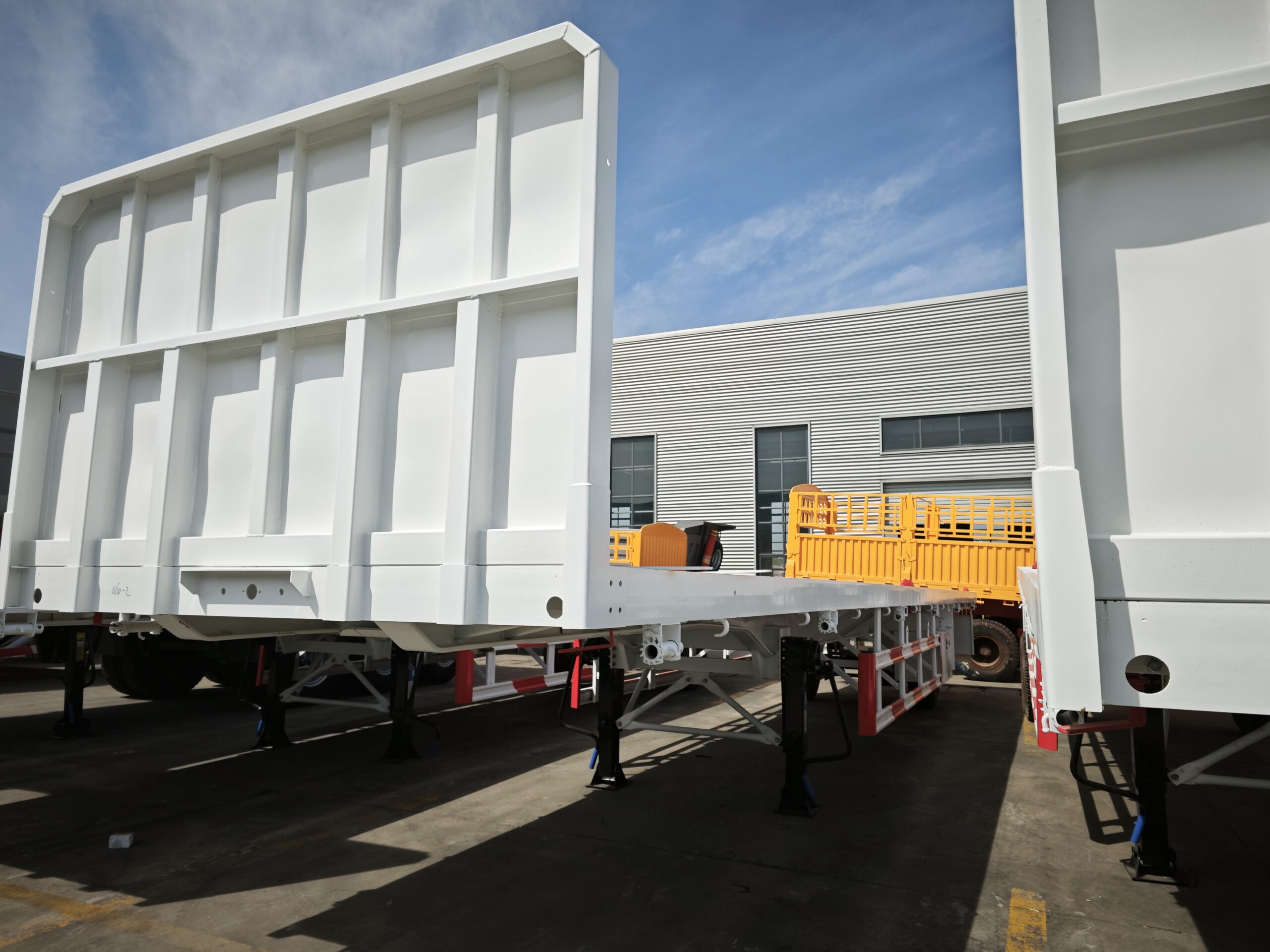

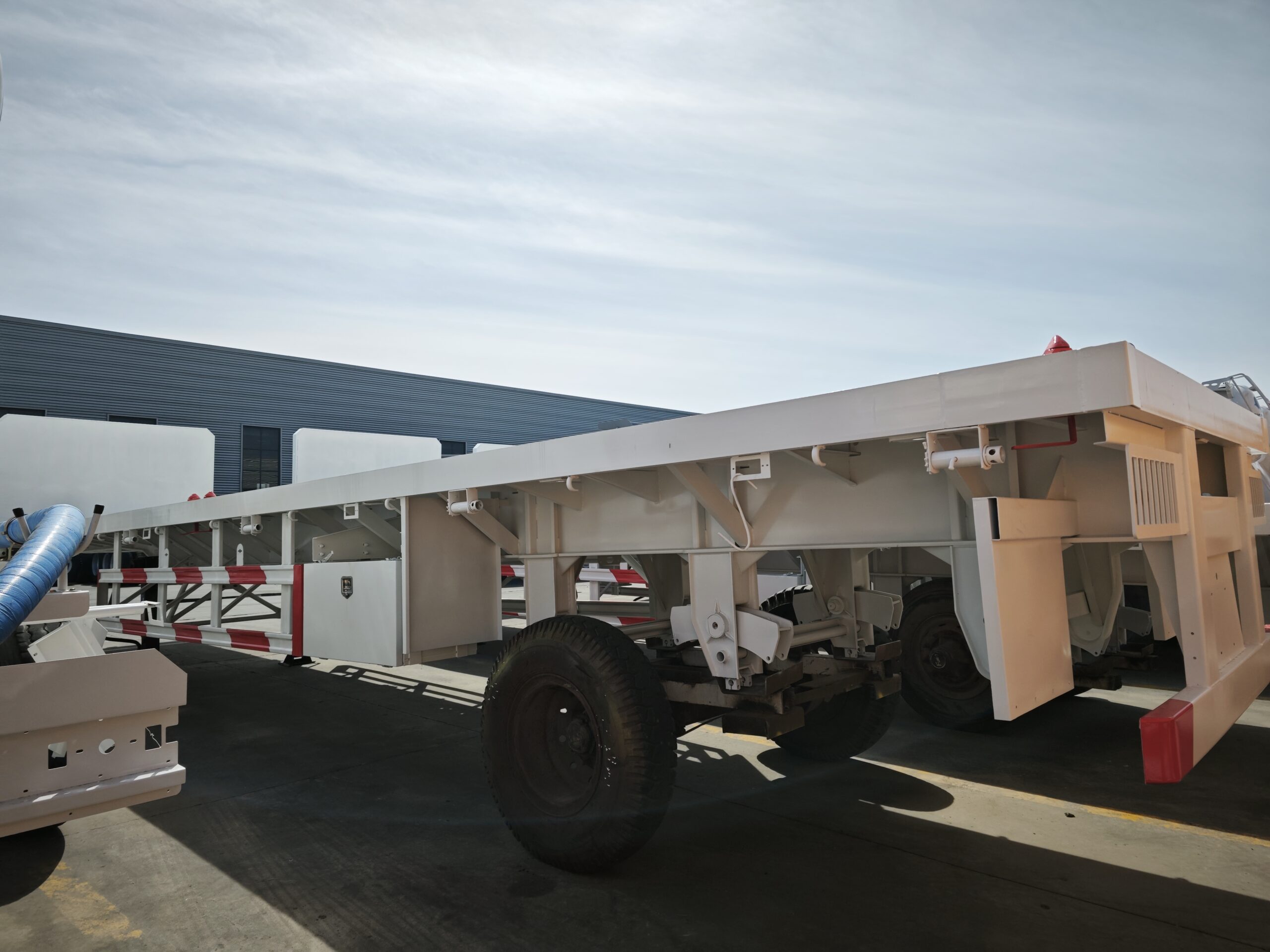

12.4-meter tri-axle flatbed semi trailer

Curb Weight (T):7
Dimension (m):12.4×2.61× 1.55
Axle Load Capacity (T):50



Advantages

Flatbed semi-trailers meet various material transportation needs with their strong carrying capacity and high transportation efficiency. Their solid vehicle structure improves the safety of cargo transportation in logistics operations. We can provide customized services and design trailers suitable for various road conditions.

Purpose

Flatbed semi-trailer is a common freight vehicle with simple structure and convenient loading, which is suitable for transporting a variety of goods. Different from low-bed trailer, its loading platform is higher and usually does not have gooseneck or hydraulic lifting function. It is mainly used for ordinary heavy-duty cargo transportation, such as steel, building materials, mechanical equipment, etc.

Performance

Diversified structural design, standard load capacity of 20~40 tons, heavy-duty models can reach more than 60 tons. Usually 1.2~1.5 meters (higher than low-bed trailer, height can be customized, loading and unloading requires the use of a springboard), common 2~4 axles, optional air suspension or leaf spring suspension, adapt to different road conditions. In compliance with GB1589 and other regulatory requirements, it must be equipped with ABS anti-lock braking system, reflective logo, etc.

Specification

Dimensions (L x W x H) ( mm)  12400×2610× 1550(customizable)
Tare weight (kg) 7000 (depending on final configuration)
Maximum load capacity (kg ) 50000( Customizable)
Main beam Q345B/T700 steel Height 500mm,The upper wing plate is 14 mm,The lower wing plate is 6 mm,The vertical plate is 8mm. ( customizable)
Side beam Q235 16# channel steel (customizable)
Base 3mm (customizable)
Axles 13/16/20 tons, optional number of axes For example, 2/3/4/6 axis …, axle brands can be selected like SAF/FUWA/BPW ETC
tire 12.00R22.5/315 80R22.5/11.00R20/12.00R20 (brand , single and double optional)
rim 9.00-22.5/8.00-20/8.50-20
Traction pin 2″ (50mm) or 3.5″ (90mm) JOST or other brands available

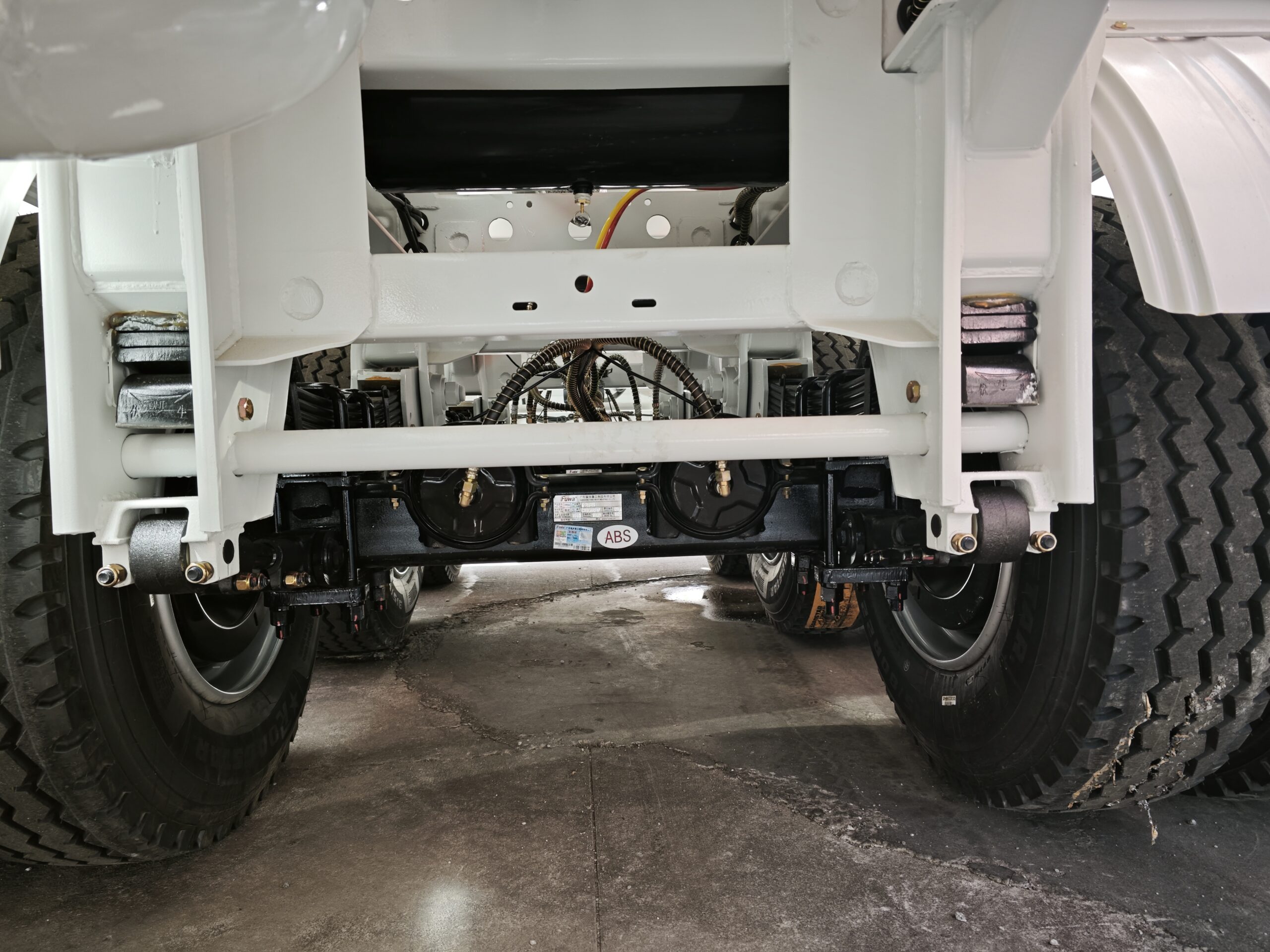

Suspension Mechanical suspension , air suspension (US or Germany)
Leaf Spring 90(width)mm*13/16(thickness)mm *10(layers)
landing gear 28 ton landing gear. Brand optional FUWA/JOST, etc.
Twist Lock 4/8/12 units (customizable)

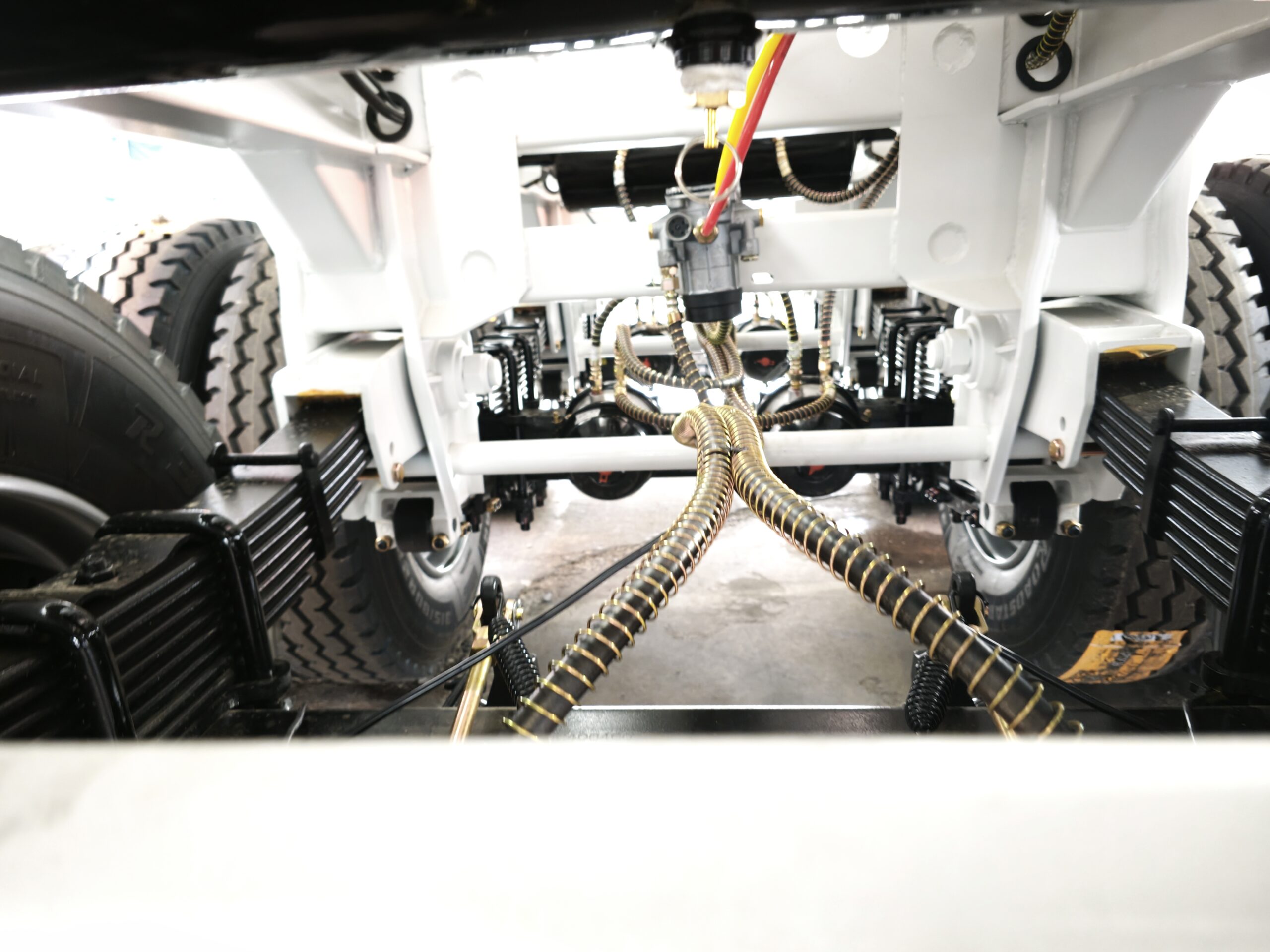

Braking system Dual wire brake system, air chamber T30/30, 3X40L air tank drum
Electrical System 1. Voltage: 24v waterproof 2. Socket: 7 ways (7-wire harness); Lead light type (standard rear light, turning light, rear reflector, side light, side reflector, etc.)
